::Product wiring::

SK-DB2000SYS Cabling Diagram(see figure)

NOTE:Connect Indoor-RJ45 port in SK-DB2000M control unit to SK-DB2000TI touch panel with cat5 cable;connect the other RJ45 port in SK-DB2000M control unit to SK-DB2000TO touch panel with cat.5 cable

-------------------------------------------------------------------------------------------------------------------

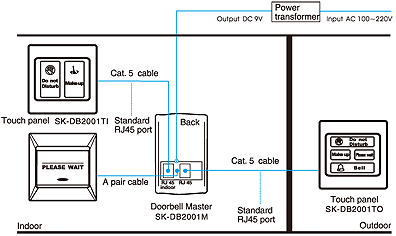

SK-DB2001SYS Cabling Diagram (see figure)

NOTE:Connect Indoor-RJ45 port in SK-DB2001M control unit to SK-DB2001TI touch panel with cat.5 cable;connect the other RJ45 port in SK-DB2001M control unit to SK-DB2001TO touch panel with cat.5 cable

::Product Installation::

Installation Request

1.mount the fixed bracket on the switch box

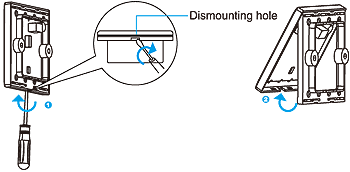

Dismounting method of touch panel and fixed bracket

2.Fix the doorbell in proper position and connect the network cable terminal according to the cabling diagram

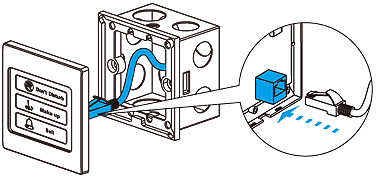

3.Draw out network cable of from switch box and trim up,press tightly on terminal block as illustration

4.Completion of installation
