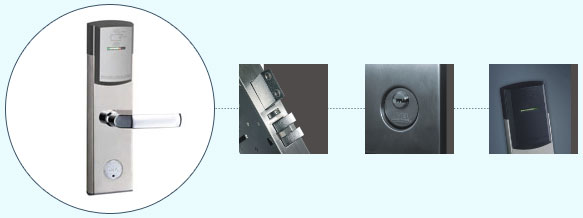

737UMF1800-PP ::
737GMFW5500 ::
737UMFB1003-RR ::
Features ::
Worldwide Reference
::
Feaures ::
|
● |
ANSI Mortise 5 latches, motor built-in
with alarming function |
|
● |
Door thickness between 38mm and 65mm; |
|
● |
Finish: Satin chrome and Satin chrome
with golden edge; |
|
● |
Philip Mifare-1 proximity card, complies
ISO14443 standard 8kbits ram, 16 sectors,
each sector has 48 bit memory, can read,
write and encrypt. Suitable for "uni-card"
application; |
|
● |
Multi-application: Compatibility with
DLL, FILE, PMS-VC, WINSOCKET, FIDELIO; |
|
● |
Reader: Touchless; |
|
● |
Reader time: 1-2 seconds; |
|
● |
Working voltage: 6V, four AA alkaline
batteries; |
|
● |
Standard mechanical key override; |
|
● |
Audit trail records the last 828
unlocking transactions; |
|
● |
System consists of Lock, Encoder,
Software, Mifare card, Query card. Optional
devices: Energy Saving Switch, Elevator
Controller. |

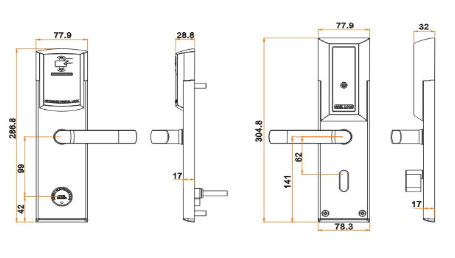

:: Technical Parameters ::
:: Related Products ::
Entrance Function
A lock will be set as entrance door lock to make
authorized guests or staff unlock, max. 15 entrance
locks can be set in a system.
Energy Saver
Special for Mifare card,that only Mifare card in the
hotel will work on it.
Elevator Controller
Enable the authorized card holders to access the
specified floor.
::Related Information ::

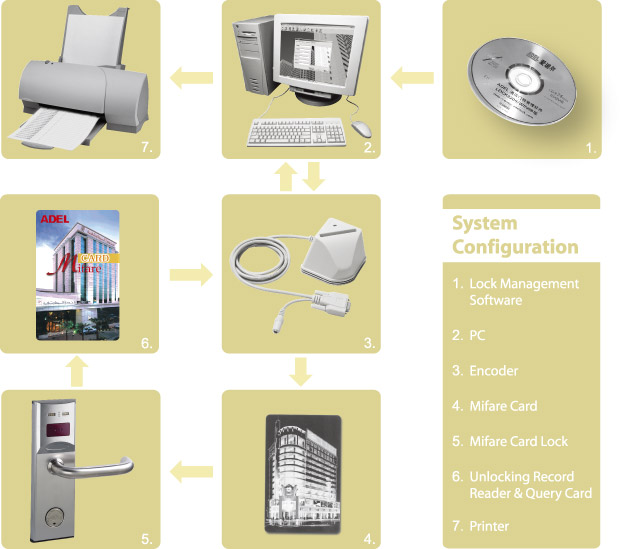

System Configuration
 |
